FC Discrete Basic (Black)

$3.00

Basic discrete board. Capable of NROM, CNROM and UxROM.

Discount per Quantity

Quantity 10 -49 50 -249 250 +
Price $2.75 $2.50 $2.00

In stock

SKU: fc_discrete_basic_black Categories: , ,

Description

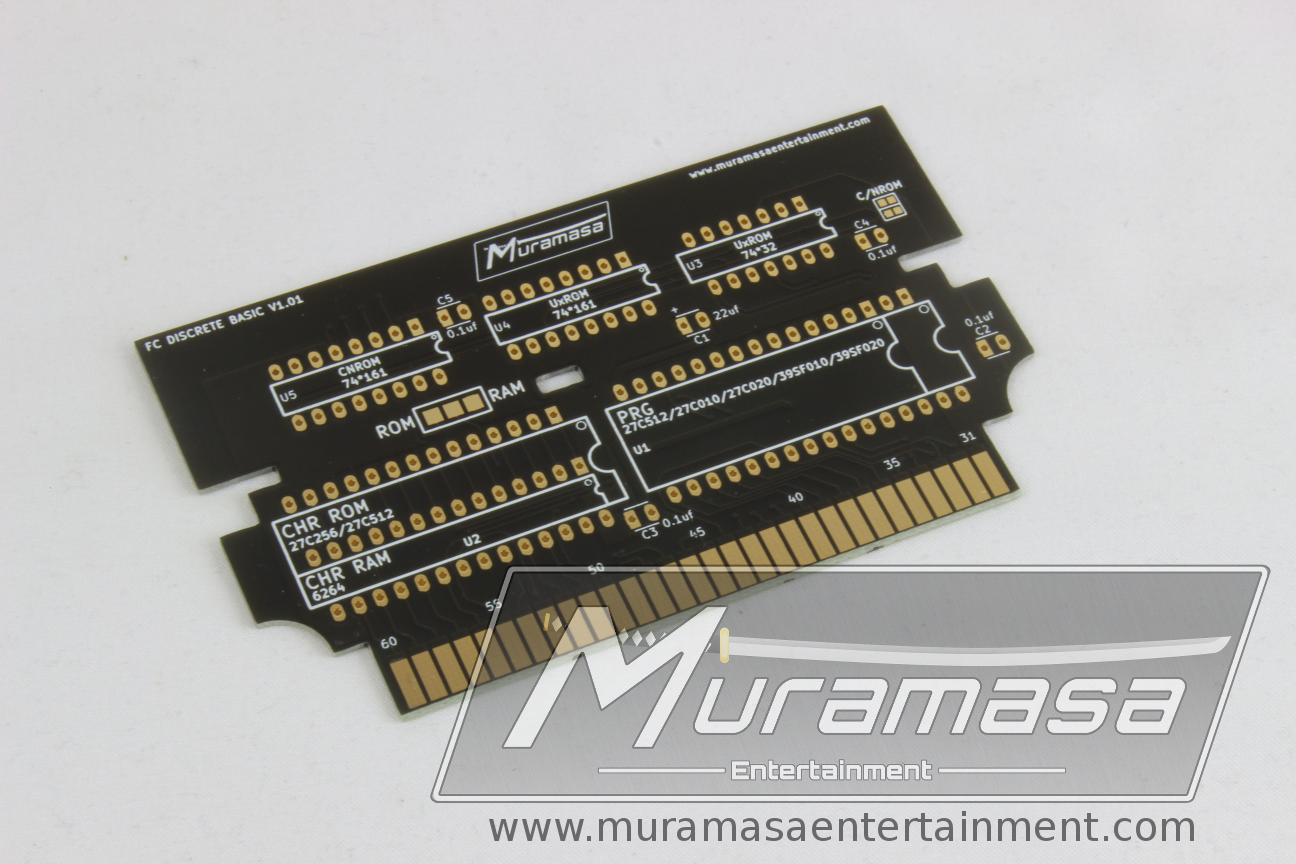

FC Discrete Basic Board

The FC Discrete Basic is a homebrew or reproduction board Capable of NROM, CNROM and UxROM mappers. Please note this board was designed to fit in the shells we manufacture which you can find here.

Component List

U1 – PRG – 27C512/27C010/27C020/29F010/29F020 or compatible (Not Carried)

U2 – CHR – 27010/27C020/29F010/29F020 or compatible (Not Carried)

C1 – 22uf 16V Capacitor (HERE)

C2,C3 – 0.1uf 50V Capacitor (HERE)

Cartridge Shell (HERE)

CNROM

U5 – 74HC161 (HERE)

C5 – 0.1uf 50V Capacitor (HERE)

UxROM

U3 – 74HC161 (HERE)

U4 – 74HC32 (HERE)

C4 – 0.1uf 50V Capacitor (HERE)

Mapper Compatibility

Verified compatible with NROM, CNROM, UNROM, and UOROM. Please note that other mappers have not yet been tested.

Instructions/Tutorials

Build instructions/tutorials aren’t available at this time. If you are uncomfortable or new to building your own cartridges please wait for tutorials to become available.

Additional information

Weight 0.0350 lbs
Dimensions 4.02 × 2.2 × 0.055 in
