FC TxSxROM Advanced – MMC3

$13.00

Advanced MMC3 board with save capability.

Discount per Quantity

Quantity 10 -49 50 +
Price $12.50 $12.00

FC TxSxROM Advanced

Advanced MMC1 or MMC3 board with save capability.

In stock

AX5202P (MMC3)

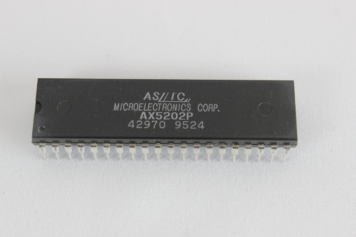

The AX5202P is a clone of the MMC3 used in TxROM boards.

In stock

SKU: FC_TxSxROM_Advanced_MMC3 Categories: , ,

Description

FC TxSxROM Advanced Board – MMC3

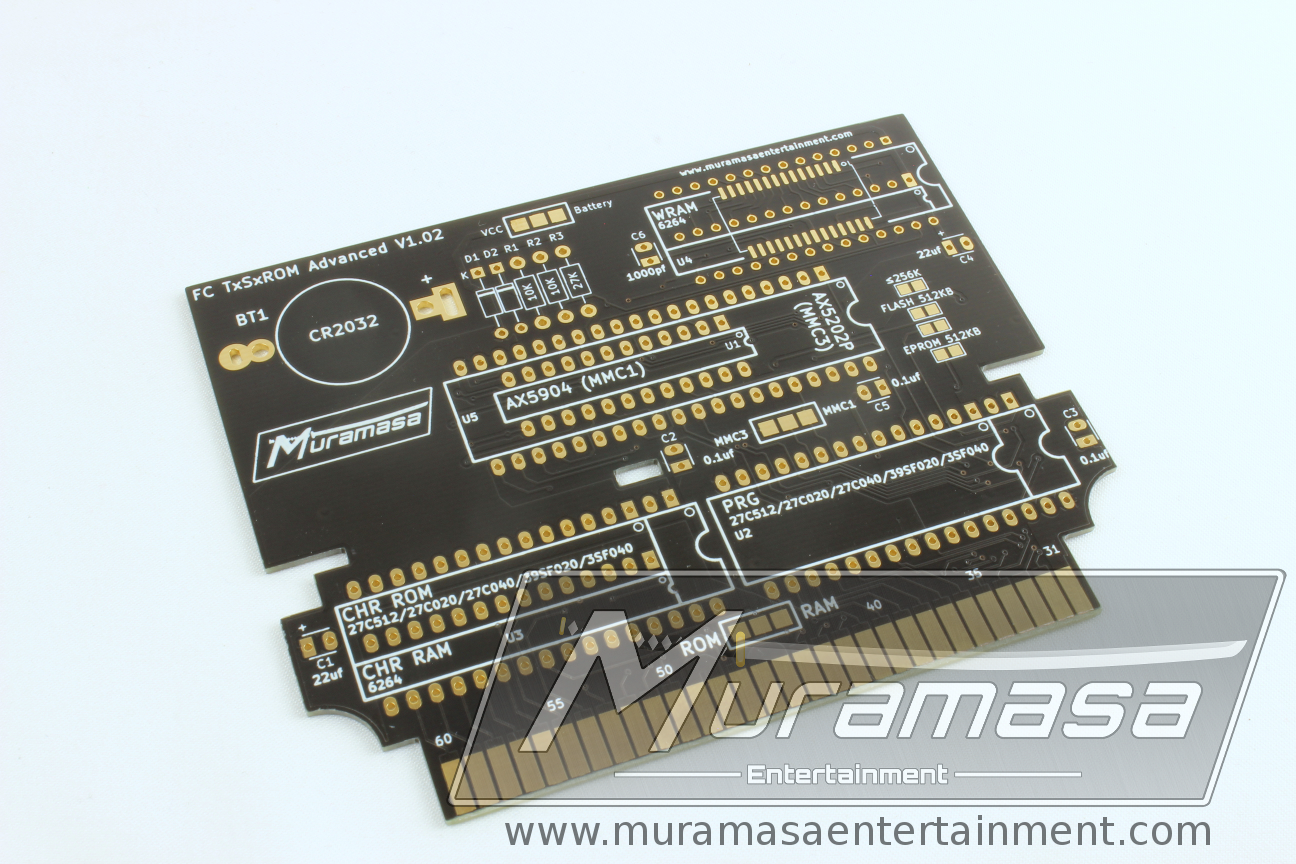

The FC TxSxROM Advanced is a homebrew or reproduction board that supports MMC3 mappers (Mapper 4) and supports WRAM with save support. Please note this board was designed to fit in the shells we manufacture which you can find here.

Component List

U2 – PRG – 27C020/27C040/29F020/29F040/39SF020/39SF040 or compatible (39SF040 HERE)

U3 – CHR ROM – 27C020/29F020/39SF020 or compatible (Not Carried)

U3- CHR  RAM- 6264 SRAM (6264 HERE)

U4 – WRAM – 6264 SRAM(6264 HERE)

U5 – MMC3 – AX5202P MMC3 Implementation (INCLUDED)

C1,C4 – 22uf 16V Capacitor (HERE)

C2,C3,C5 – 0.1uf 50V Capacitor (HERE)

C6 – 1000pf Capacitor (Optional*) (COMING SOON)

D1,D2 – 100V 300MA Diode – 1N4148-T50A (HERE)

R1,R2 – 10K Ohm Resistor (HERE)

R3 – 27K Ohm Resistor (Optional) (COMING SOON)

Battery – CR2032 Battery with tabs (Not Carried)

Mapper Compatibility

Verified compatible with TLROM, TGROM, TSROM, TKROM, and TNROM mapper types. Please note that other mappers have not yet been tested.

*Please note that is only for some games that have a hard time with newer SRAMs (Faster then 120ns). If you are using older SRAM or your game doesn’t have an issue then it is not needed.

Instructions/Tutorials

Build instructions/tutorials aren’t available at this time. If you are uncomfortable or new to building your own cartridges please wait for tutorials to become available.

Additional information

Weight 0.064375 lbs

FC TxSxROM Advanced

Weight 0.05 lbs
Dimensions 4.02 × 3.44 × 0.055 in
Color

Black

AX5202P (MMC3)

Weight 0.014375 lbs
Dimensions 2.2 × 0.75 × 0.35 in
