OpenTendo – NES Replacement Board Black ENIG (Top Loader)

$15.00

PRE-ORDER

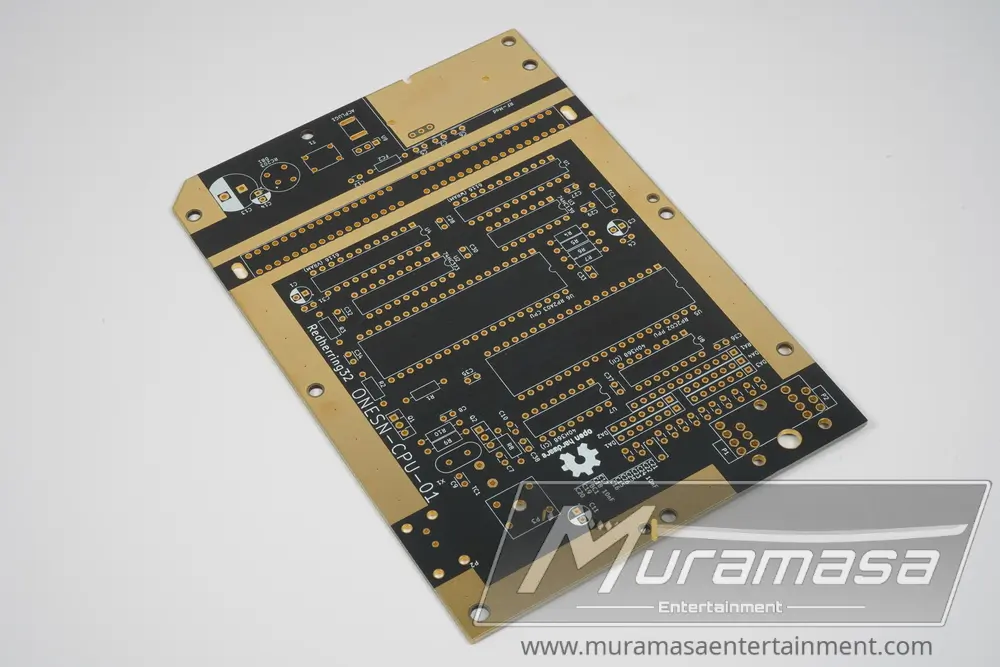

Please note that the images are renders and colors will match standards from pcb houses.

In stock

Description

OpenTendo – NES Replacement Board Black w/Enig Finish (Top Loader)

The OpenTendo is an open source board replacement for the Top Loader NES system. This listing is for release V1.0 of NESN-CPU-01.

This PCB is 1.6mm thick with an ENIG finish.

Parts

Please be sure to see the release notes here. The Bill of Materials (BOM) can be found here.

Outside of the Bill of Materials a few parts can’t be purchased new. The below parts either need to be harvested or can be purchased from places like Aliexpress, Ebay, or UTSource.

  • U5 PPU RP2C02 (harvested from original Famicom/NES or UA6528 (clone)
  • U6 CPU RP2A03 (harvested from original Famicom/NES or UA6527 (clone)
  • TC1 30pf Capacitor
  • DA1,DA3 Diode Array – DAN601
  • DA2,DA4 Diode Array – UPA64H
  • Q1 – Transistor 2SA937
  • Q2 – Transistor 2SC2021
  • P1 – Cartridge Port (Must be harvested from original top loading system or New replacement can be used if pins in middle are removed)
  • P2 – Power Switch (Must be harvested from original top loading system)
  • P3 – Reset Switch (Must be harvested from original top loading system)
  • P4 (Labeled P1 and P2 on board) – Custom 2 port NES Controller connector (harvested from original Top loading NES)
  • T1 Coil (Must be harvested from original top loading system)

Notes

Please note this is an advanced project. There is no tutorial available and no support.

Open Source

This is an open source project by Redherring32. You can find the source files on his github here.

Additional information

Weight0.1875 lbs
Dimensions8 × 5 × 0.1 in
