GEN MD Advanced (Black)

$4.00

4MB Genesis/Mega Drive Board with save!

Discount per Quantity

Quantity 10-49 50+
Price $3.75 $3.50

In stock

Description

GEN MD Advanced Board (Black)

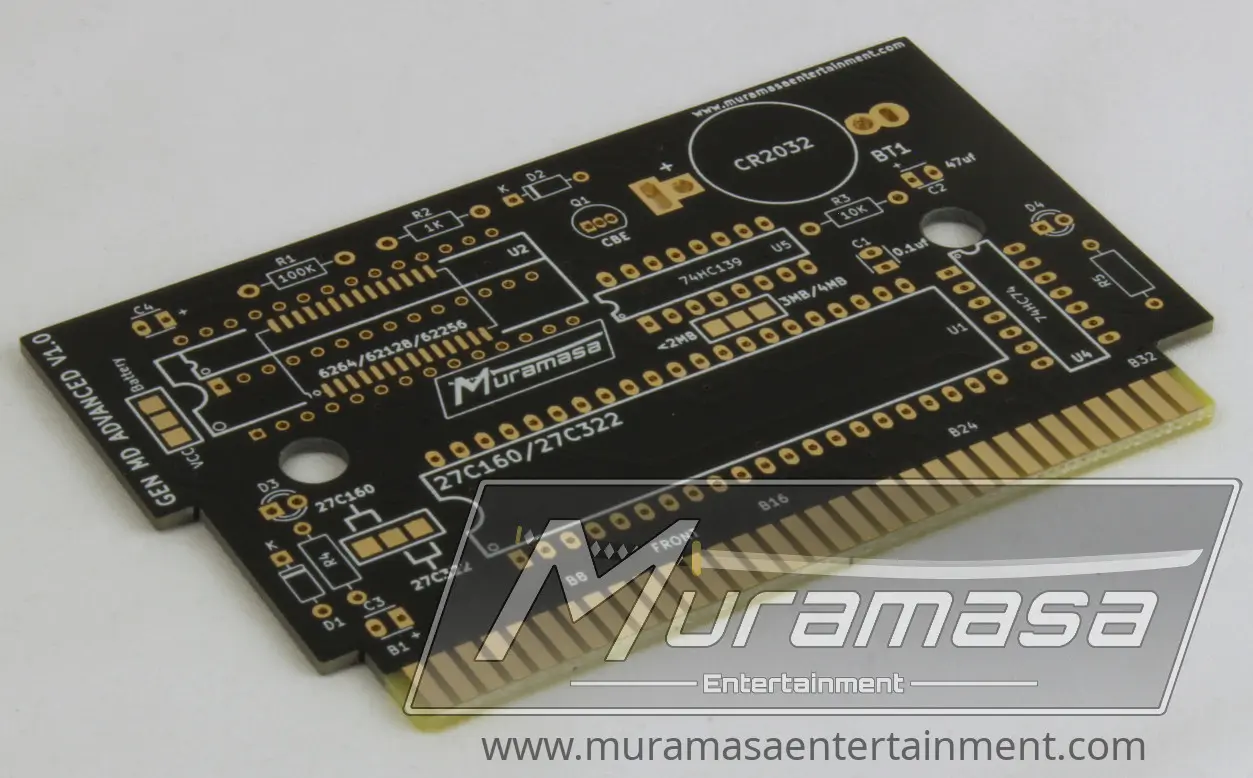

The GEN MD Advanced is a hombrew or reproduction board that supports Genesis/Mega Drive games up to 4MB (32 Megabit) with a 42 Pin EPROM with support WRAM with a battery.

Component List

U1 – ROM – 27C800/27C160/27C322 or compatible (Not Carried)

U2 – 6264/62128/62256 (6264 HERE) (62256 HERE)

U4 – 74HC74 (COMING SOON)

U5 – 74HC139 (HERE)

C1 – 0.1uf 50V Capacitor (HERE)

C2, C4 – 47uf 6.3 V Capacitor (COMING SOON)

C3 – (Optional)

D1,D2 – 100V 300MA Diode – 1N4148-T50A (HERE)

R1 – 100K Ohm Resistor (HERE)

R2 – 1K Ohm Resistor (HERE)

R3 – 10K Ohm Resistor (HERE)

Q1 – NPN Transistor BC547BTA (HERE)

BT1 – Battery – CR2032 Battery with tabs (Not Carried)

Instructions/Tutorials

Build instructions/tutorials aren’t available at this time. If you are uncomfortable or new to building your own cartridges please wait for tutorials to become available.

Additional information

Weight 0.0350 lbs
Dimensions 3.4 × 1.65 × 0.075 in
