SNES Advanced DIP42 4MB


4MB SNES Board with save!

Discount per Quantity

Quantity 10 - 49 50 - 99 100 - 249 250+
Price $3.75 $3.50 $3.25 $3.00

In stock


SNES Advanced DIP42 4MB

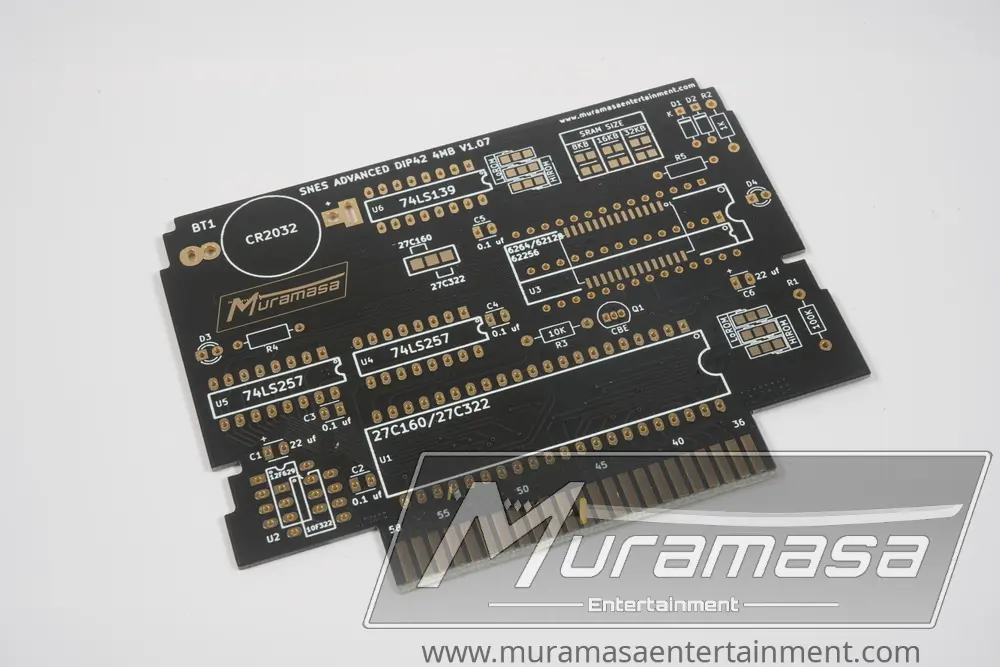

The SNES Advanced DIP42 4MB is a homebrew or reproduction board that supports LoROM and HiROM games up to 4MB (32 Megabit) with a 42 Pin EPROM with support WRAM with a battery.

Component List

U1 – ROM – 27C160/27C322 or compatible. (Not Carried)

U2 – Lockout Chip – SuperCIC Key (10F322 or 12F629 programmed with Super CIC Key) (HERE)

U3 – 6264/62128/62256 (6264 HERE) (62256 HERE)

U4,U5 – Address Multiplexing Chip x2 – 74LS257 (HERE)

U6 – Address Decoder Chip 74LS139 (HERE)

C1,C6 – 22uf 16V Capacitor (HERE)

C2,C3,C4,C5 – 0.1uf 50V Capacitor (HERE)

D1,D2 – 100V 300MA Diode – 1N4148-T50A (HERE)

R1 – 100K Ohm Resistor (HERE)

R2 – 1K Ohm Resistor (HERE)

R3 – 10K Ohm Resistor (HERE) Please note that although the board is labeled as 1K. 10K works better for all models of SNES consoles and should be used instead.

BT1 – Battery – CR2032 Battery with tabs (Not Carried)

Q1 – NPN Transistor BC547BTA (HERE)


Build instructions/tutorials aren’t available at this time. If you are uncomfortable or new to building your own cartridges please wait for tutorials to become available.

Additional information

Weight 0.0450 lbs
Dimensions 4.2 × 3.2 × 0.055 in
