SNES Advanced DIP42 2MB

$4.00

2MB SNES Board with save!

Discount per Quantity

Quantity 10 -49 50 -249 250 +
Price $3.75 $3.50 $3.25

In stock

Description

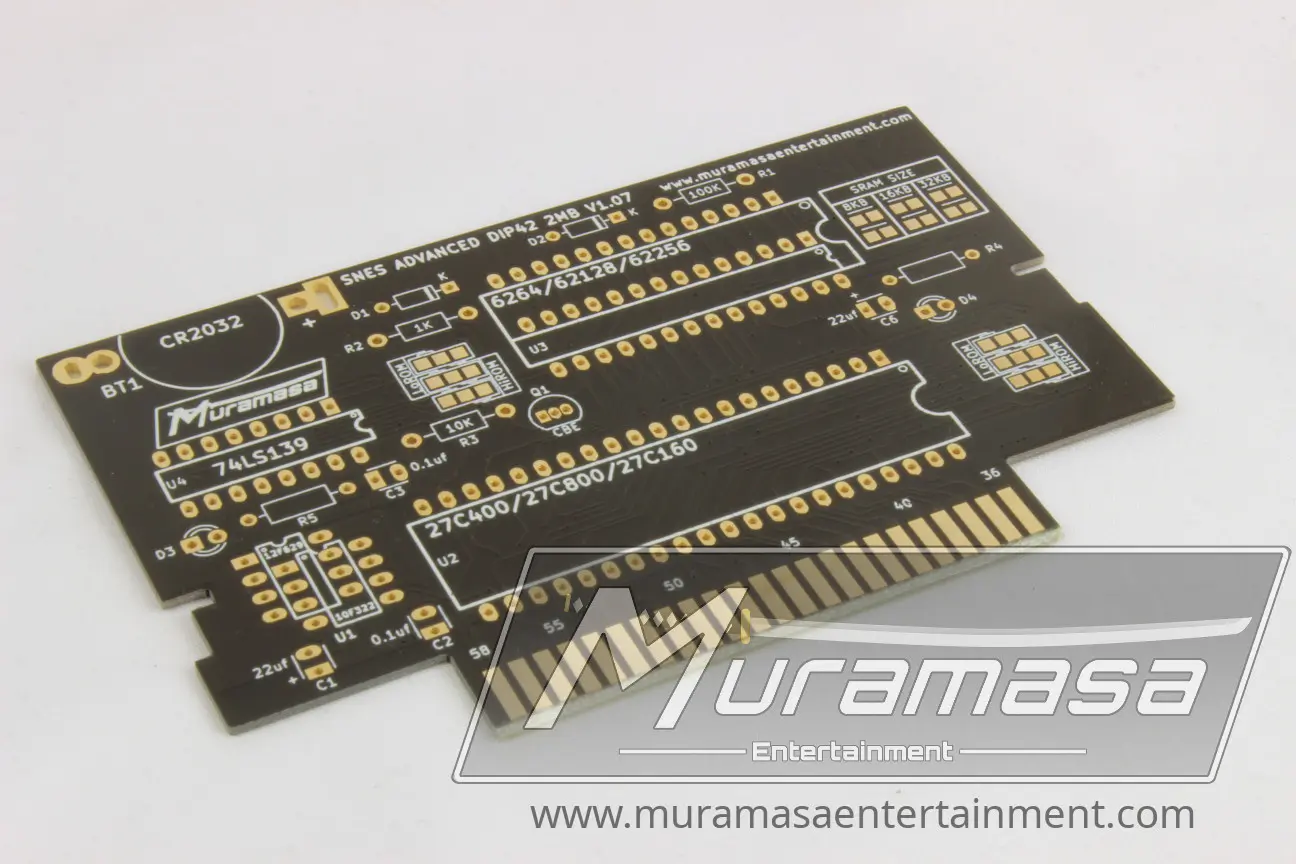

SNES Advanced DIP42 2MB

The SNES Advanced DIP42 2MB is a homebrew or reproduction board that supports LoROM and HiROM games up to 2MB (16 Megabit) with a 42 Pin EPROM with support WRAM with a battery.

Component List

ROM – 27C400/27C800/27C160 or compatible. Please note this board is NOT compatible with the 27C322 (Not Carried)

6264 (Not Carried) (62128/62256 possible with rewiring.)

Lockout Chip – SuperCIC Key (12F629 programmed with Super CIC Key) (HERE)

Address Decoder Chip 74LS139 (HERE)

C1,C4 – 22uf 16 V Capacitor (HERE)

C2,C3 – 0.1uf 50V Capacitor (HERE)

D1,D2 – 200 MA Schottky Diode (HERE)

R1 – 10K Ohm Resistor (HERE)

R2 – 1K Ohm Resistor (COMING SOON)

WRAM – 6264 SRAM (COMING SOON)

Battery – CR2032 Battery with tabs (Not Carried)

R3,R4, D3, and D4 – Are optional components for adding LEDs. Please note that no testing of this has been done and you are completely on your own to figure this out.

I have also added a new footprint for a SuperCIC programmed to a 10F322. Please not this has not yet been tested and is not guaranteed.

Instructions/Tutorials

Build instructions/tutorials aren’t available at this time. If you are uncomfortable or new to building your own cartridges please wait for tutorials to become available.
